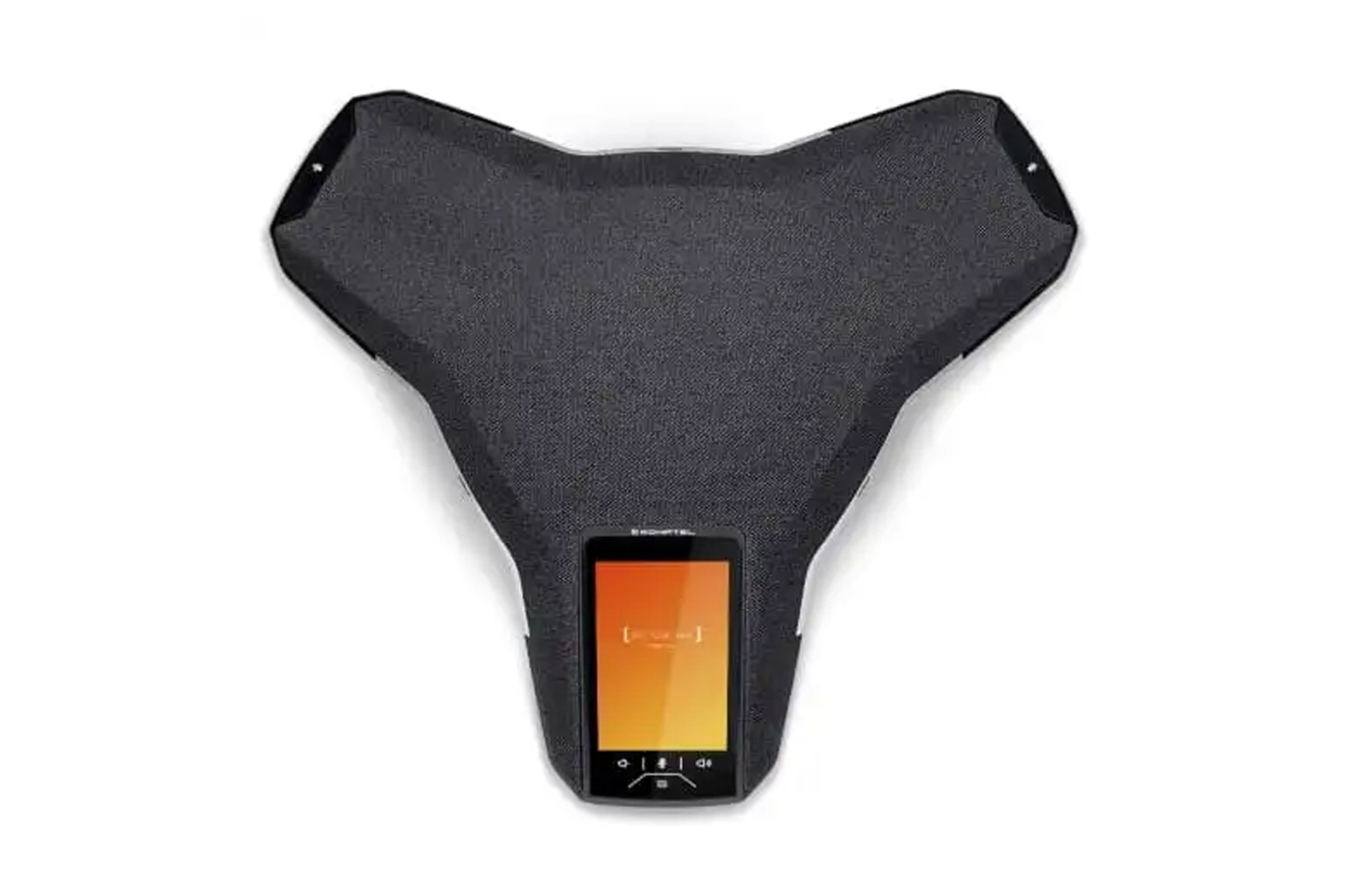

Konftel 800 IP Conference Phone

Konftel 800

IP conference phone

Hybrid conference phone with an intuitive interface. Hybrid because it has many connection options

• SIP for VoIP calls
• USB for computer and Skype for Business, Teams, Zoom meetings or other video conferencing applications
• Bluetooth to provide your mobile calls with professional sound quality

Hear and be heard

The OmniSound® HD audio technology provides exceptionally powerful and clear sound that allows participants to relax, knowing that they can hear and be heard well. This creates a natural sense of presence in every conversation.

You can easily daisy-chain 3 Konftel 800 devices together to meet the needs of even the largest conference rooms. This ensures the most optimal sound distribution and reception in rooms with more than 20 people.

Smartphone control

The Konftel Unite app lets you manage your Konftel 8 -- using your smartphone

• Start a meeting with one click
• Call contacts and groups from your phone book
• Easily combine 5 contacts into 1 call
• Control the volume
• Create fixed talk groups

Specifications

Package contents

• Konftel 800 (910101088)

Dimensions

• Size: 326 x 370 x 75 mm, weight: 1.4 kg.
• Color: black

Anti-theft protection

• Kensington® - security slot.

User interface

• Screen: 4.3'' 480x800 touchscreen
• Menu: English, Danish, Finnish, French, Spanish, Dutch, German, Norwegian, Polish, Russian, Swedish, Turkish, Italian.
• Touch keyboard: 2 volume keys, 3 mute keys
• LEDs: active connection information, hold and mute

Power supply

• PoE (Power over Ethernet): IEEE 802.3af/at (PoE+)
• Konftel PoE Injector (900102150)

Call features

• Call hold
• Call waiting
• Call park / release (depending on PBX)
• Incoming call transfer
• Local 5-way conferences (call bridging)

Audio specifications

• OmniSound® technology with HD audio, full duplex, automatic echo cancellation and noise suppression
• Microphone: 3 digital MEMS microphones
• Sound pickup area: 6 m
• Speakers: range frequency: 80–14000 Hz, volume: max. 905db SPL 0.5 m.
• Equalizer: soft, neutral, lively.
• Codecs: G722, G711 (A-law/μ-law), G729, Opus, iLBC

Audio extension

• Additional microphones (900102144): echo cancellation and noise suppression, 3 digital MEMS microphones, 6 m voice pickup range, 3 m cable
• Daisy chain: up to 3 x Konftel 800, connect units via dedicated optional cable (900102152)

Connectivity with other devices

• Bluetooth® with NFC (available late 2019)
• USB: 1 x USB 3.0 Type A, 1 x USB 3.0 Type micro-B
• Ethernet: 1 x Ethernet 10/100/1000Mbps, PoE Type 1&2 (IEEE 802.3af and IEEE 802.3at)
• External microphones: 2 x RJ11

Networks and communication

• Network addressing: DHCP or static IP NAT
• NAT traversal: STUN, ICE, and TURN
• Supported protocols: SIP 2.0 (RFC 3261 and related RFCs)
• Protocols Signaling: UDP, TCP, TLS and SIPS
• Media Support: RTP, SRTP
• Security: 802.1x authentication using EAP-TLS
• Quality of Service: DiffServ, VLAN (IEEE 802.1p/Q)
• DTMF Support: RFC 4733/2833, SIP INFO, In-band
• Time Server: NTP and SNTP (RFC4330)
• Additional Features: Remote syslog, PCAP-log, unique hostname, LLDP

Configuration and Provisioning

• Configuration via integrated web server, HTTP or HTTPS
• Konftel ZTI (Zero Touch Installation). Auto-provisioning support with certificate management
• Separate user and administrator password protection.
• Remote configuration via the Internet
• Diagnostics via the Internet
• Log files: log level, network statistics

Storage/operating environment

• Temperature: 5° – 40°C.
• Relative humidity: 20-80% non-condensing.
