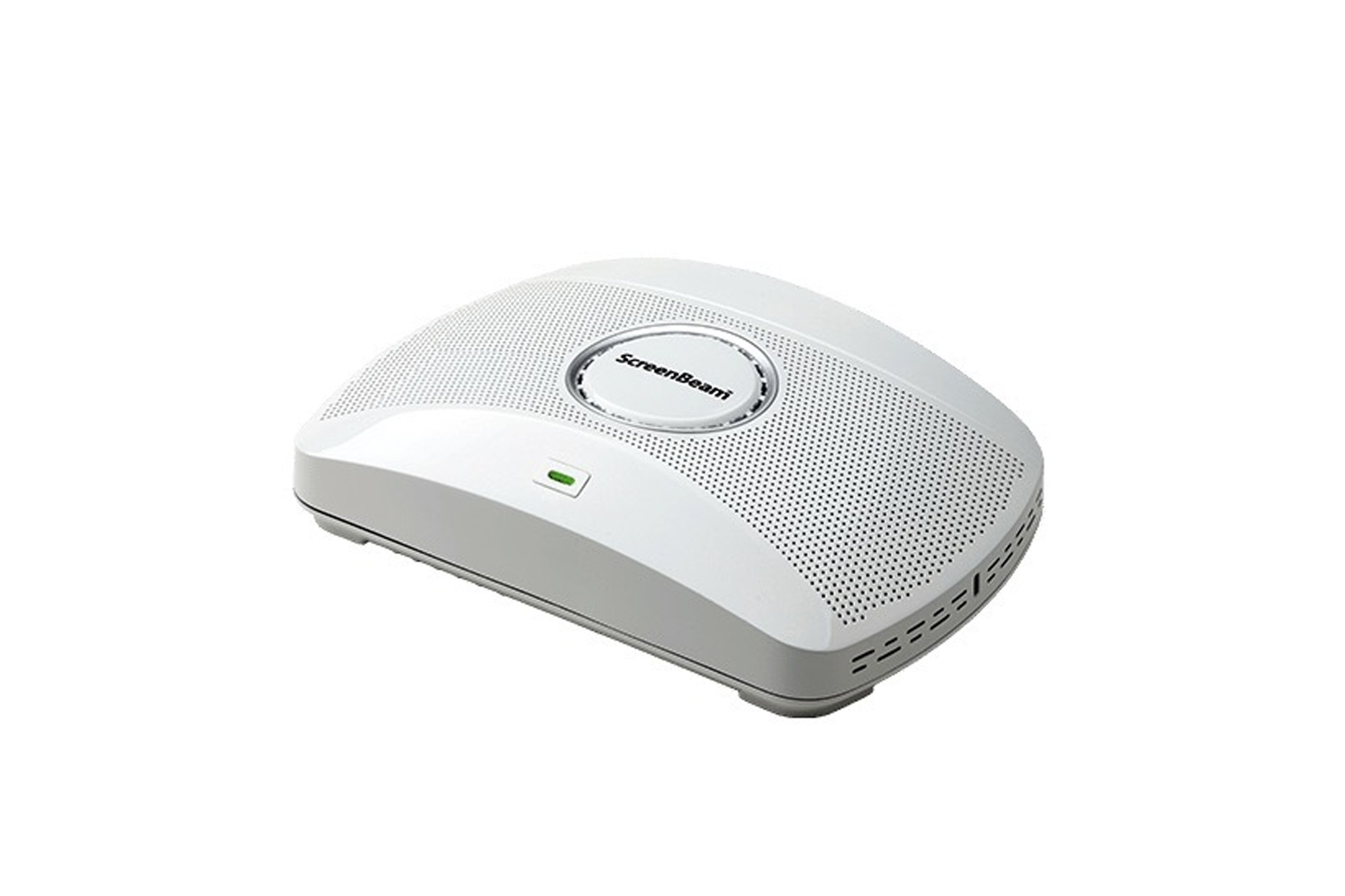

ScreenBeam 1100 Wireless HDMI VGA Display System

The solution enables wireless transmission of the screen image from virtually any device, as the system natively supports (without additional applications) the following operating systems:

• Windows
• macOS
• Android
• iOS (iPhone), iPadOS (iPad).

ScreenBeam 1100 uses both the Miracast technology built into Windows computers and Android mobile devices, as well as the AirPlay technology built into Apple computers (macOS) and mobile devices (iOS, iPadOS).

This is a professional solution that provides such unique functionalities as:

• central management system (CMS) available free of charge
• connection to the LAN network wirelessly (WiFi) or wired (Ethernet)
• support for the 802.11ac 2.4/5GHz WiFi network with the function for DFS (dynamic frequency selection)
• possibility of simultaneous connection to two networks, e.g. corporate LAN and guest network
• possibility of sharing the network with guests via the Screenbeam 1100 receiver only for presentation purposes or also for access to the Internet (network name and password visible on the screen for easy and quick connection for guests)
• separate WiFi antenna for screen image transmission
• possibility of adjusting the WiFi signal strength to control the range
• support for touch and annotation functions when connected to touch monitors (with Windows)
• operation of the connected computer using a mouse and keyboard connected to the Screenbeam 1100 device
• it does not require the presenter's computer to be connected to the local network, which is an ideal solution for guests (regarding
• supports resolution up to 4K with refresh rate up to 60 fps
• connection to a monitor, TV, projector via HDMI port with sound support (5.1)
• support for duplicated and extended screen mode
• built-in VGA port with audio Jack port to support older monitors/projectors
• possibility to secure the connection with a PIN code (adjustable PIN length)
• possibility to select the channel on which communication takes place to avoid conflicts
• possibility to upload configuration via USB port in the case of devices not registered in the central management system
• possibility to upload your own image as wallpaper
• Digital Signage functionality when the presentation is inactive (support for informational/advertising content in HTML5, WebGL, Video Webm, Video H264, Video MP4.

Includes:

• ScreenBeam 1100
