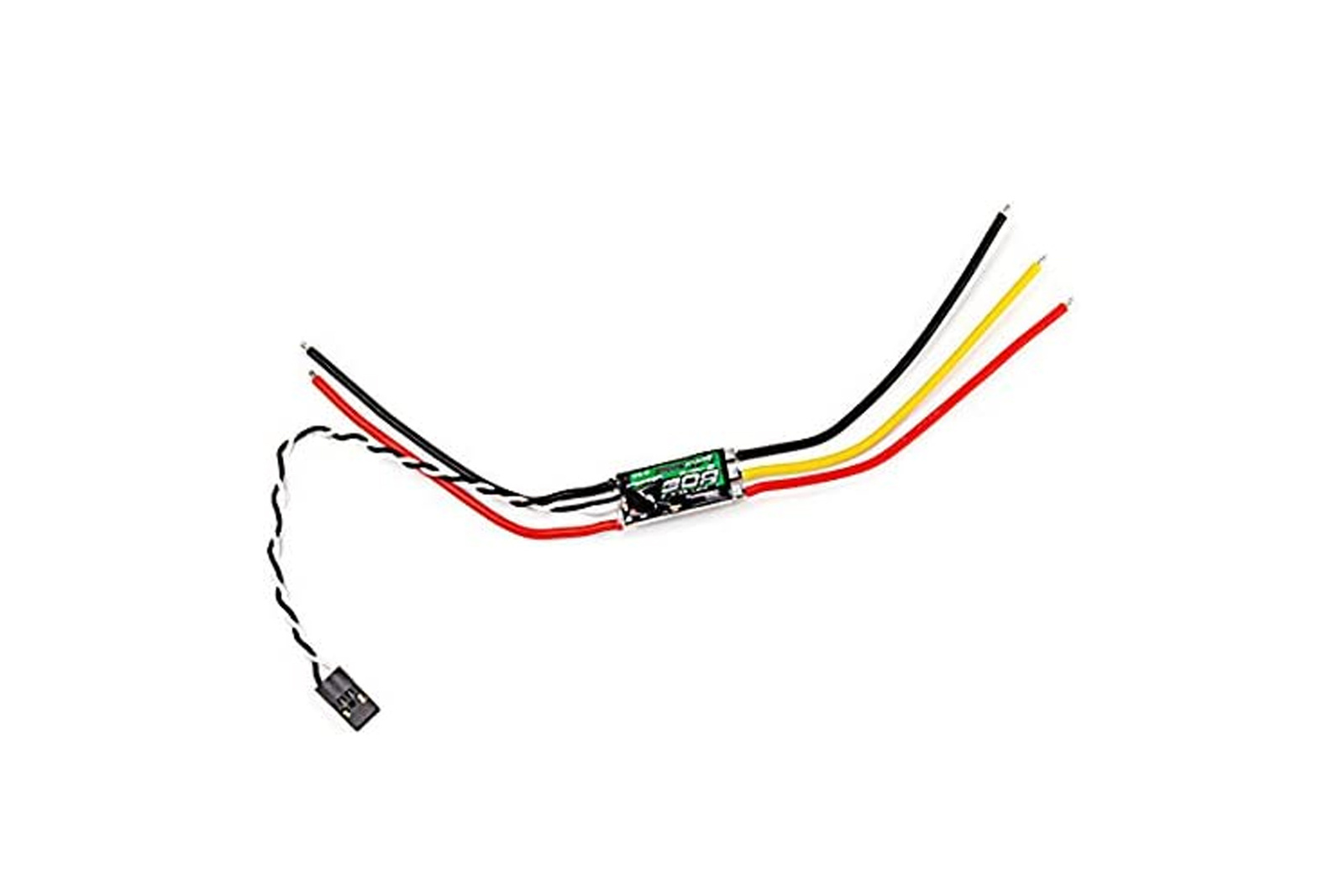

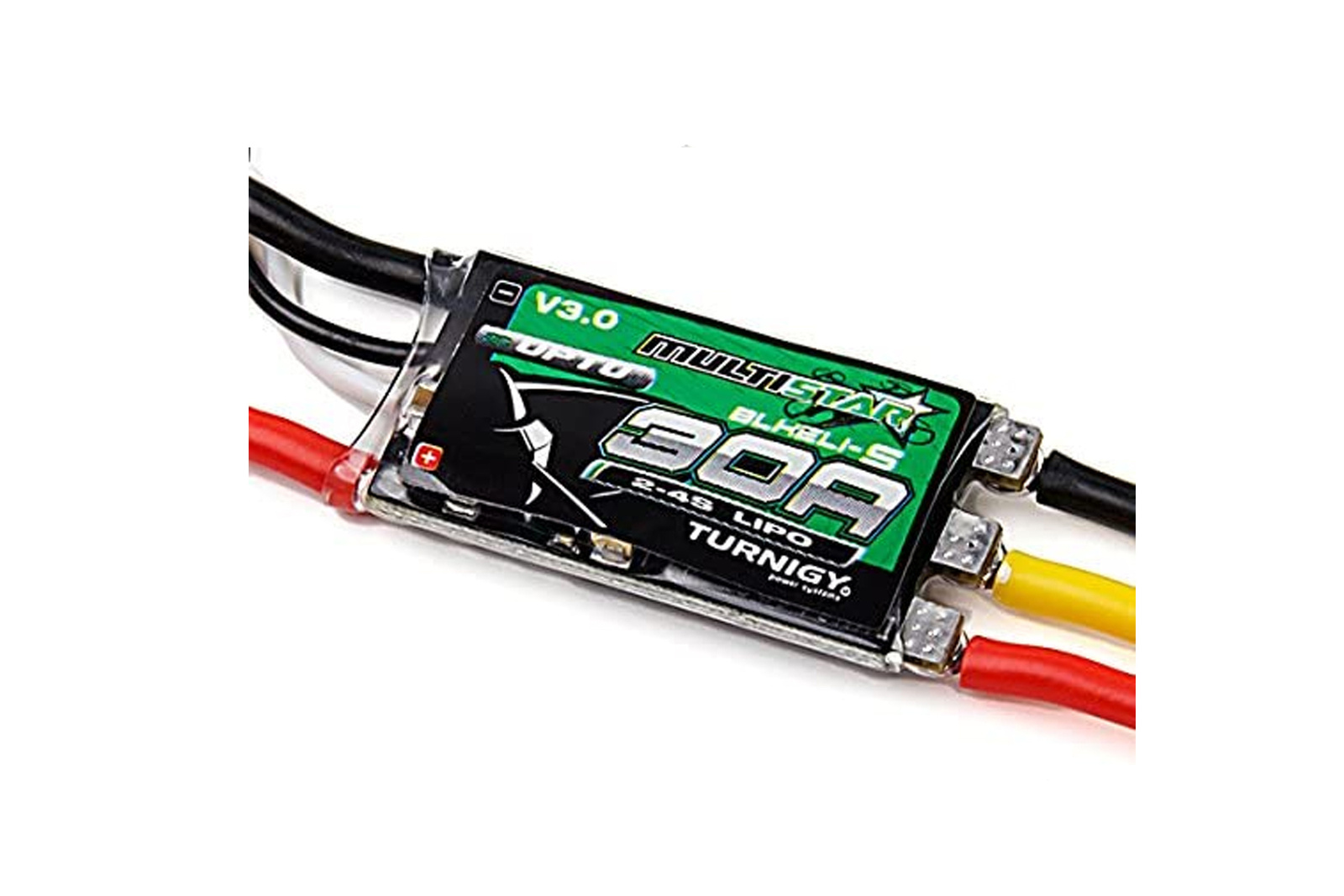

Turnigy Multistar 30A Brushless ESC for Multicopters

ELECTRONIC SPEED CONTROL ESC FOR BRUSHLESS MOTORS
Turnigy Multistar 30A Multi-rotor ESC 2-6S ESC
Helicopter, Airplane, Drone, Quadcopter Multi-rotor
MULTISTAR ESCs are high-quality speed controllers at a fantastic price! Designed for simple installation and easy setup, these ESCs offer excellent performance when used in multi-motor models. If you're new to multi-rotor models and need an easy-to-install solution that's tested and proven in the field, you've found what you're looking for.

These ESCs have a very smooth, linear throttle response, but don't lose the ability to react quickly and sharply to throttle inputs. It's all up to you. Safety hasn't been forgotten. These ESCs feature overload protection, signal loss (shutdown), and safe start. All MultiStar ESCs are equipped with connectors. Using a suitable splitter, this solution allows for the connection of multiple ESCs (2, 3, or 6) in a Plug and Play system. Could anything be simpler?

All MultiStar ESCs feature ATmega MCU functionality, which allows for software configuration of the ESC – an option for those who want it! A programming card is also available for quick and easy customization of the ESC firmware to your needs.

Features:

Smooth and linear throttle control
Fast throttle response
Atmel MCU
Motor runaway protection
Signal loss protection
Power-on protection (throttle lock)
Support 480Hz + high refresh rates (up to 499hz)
Compatible with programming card
Specifications:

Maximum load: 30A
Input voltage: 2-6 cell Lipoly
BEC: 5V / 4A
PWM: 8KHz
PWM: 8KHz
Permissible number of revolutions: 240000 rpm for 2 Poles
Size: 41mm x 24mm
Input (battery): male 3.5mm
Output (motor): female 3.5mm Weight: 35g
