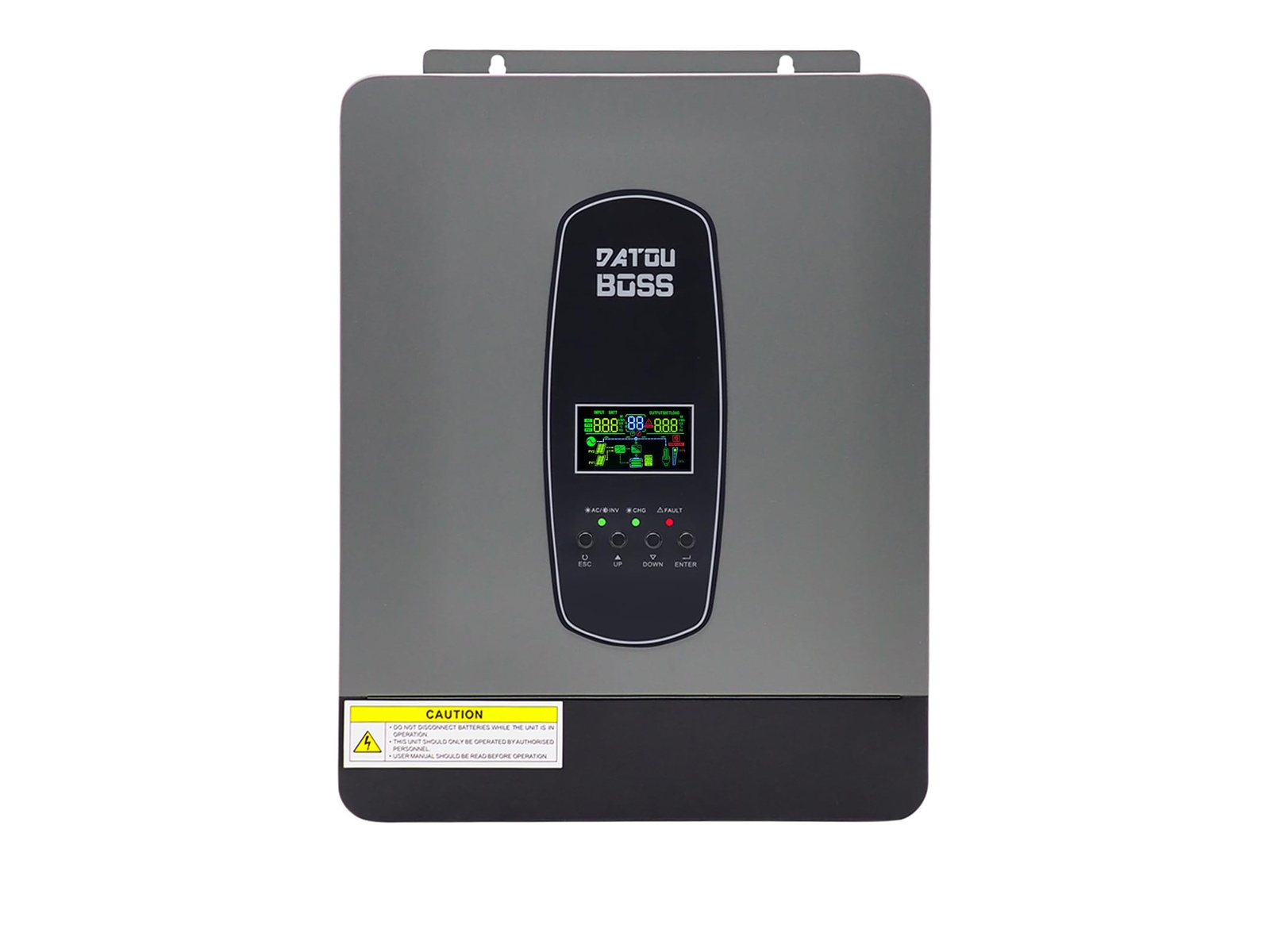

DATOUBOSS DT2430 – 3000W Solar Inverter with MPPT

The DATOUBOSS DT2430 is an advanced solar inverter with a rated power of 3000W and a peak power of 10000VA, designed to efficiently manage solar energy for your home or business. Equipped with a built-in 80A MPPT charge controller, this inverter delivers high charging efficiency of up to 99.9% and offers versatile operating modes to meet a variety of user needs.

Built-in MPPT and High Efficiency

The DT2430 inverter operates with an input voltage of 24VDC and an output voltage of 220V/230V AC. By using fully digital dual voltage and current control and advanced SPWM technology, the MPPT charging efficiency reaches an impressive 99.9%. The maximum PV output power is 5500W and the maximum PV charging current is 100A, ensuring the quick and efficient use of solar energy. The inverter also features a high level of safety, effectively protecting home circuits.

Four Safe Charging Modes and Three Output Modes

The 24V inverter offers users the ability to choose from four different charging modes: solar priority mode, power supply priority mode, hybrid charging mode, and standby mode in the event of a power outage. Additionally, three output modes are available: PV priority mode, power supply priority mode, and inverter priority mode. These options meet a variety of user requirements and ensure optimal performance in various circumstances, allowing for flexible energy management.

Versatile Application Scenario

This off-grid inverter can be used with a wide range of 24V lead-acid batteries, such as sealed, AGM, gel, or submersible batteries, as well as lithium batteries. Its versatility allows it to power a wide range of devices found in both residential and commercial buildings. This includes engine-driven devices such as lights, fans, refrigerators, and air conditioners. The lithium batteries can be charged by both photovoltaic solar energy and conventional electricity, adding to the system's flexibility.

Specifications:

• Model: DT2430 DATOUBOSS
• Rated Output Voltage: 230Vac ± 5%
• Rated Power: 3000W
• Peak Power: 10000VA
• MPPT Voltage Range: 120 ~ 500 Vdc
• Maximum PV Output Power: 5500W
• Max. AC Charging Current: 60A
• Max. PV charging current: 100A
• Battery voltage: 24VDC
• Built-in charge controller: 80A MPPT
