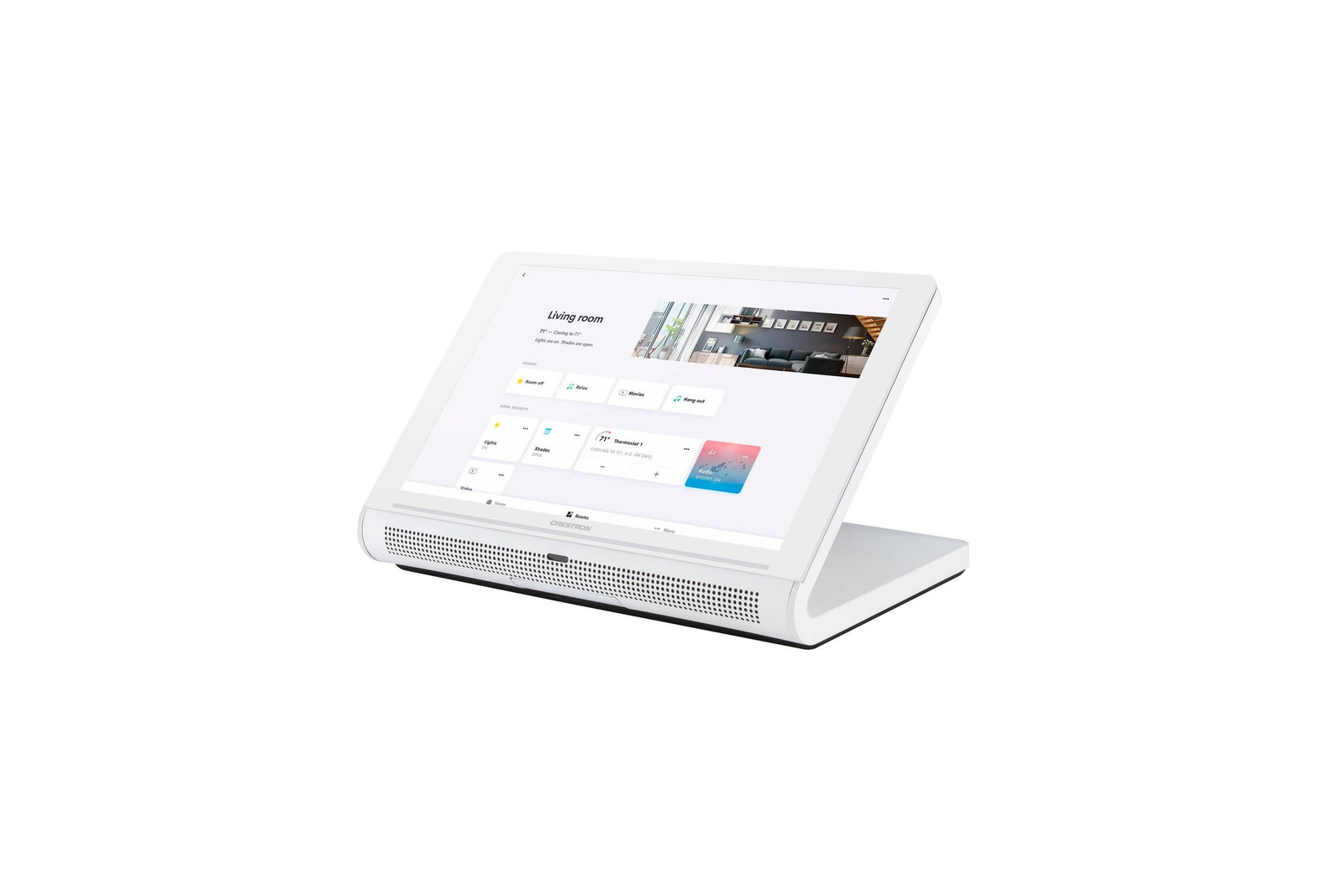

Crestron TS-770R-W 7-inch touchscreen

The Crestron® TS-770R series is a stylish and versatile tabletop touchscreen designed specifically to support the Crestron Home™ OS app. The TS-770R features a 7-inch (178 mm) capacitive touchscreen. PoE and Wi-Fi® networking and a modern tabletop design allow you to use the touchscreen almost anywhere.

Advanced Touchscreen Control

The TS-770R offers a sleek and powerful user interface for controlling your home technology through the Crestron Home app. The touchscreen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. The built-in proximity sensor wakes up the screen without requiring user interaction, while automatic brightness control ensures optimal visibility in various lighting conditions.

Video Streaming

Native support for H.265, H.264, and MJPEG formats allows the TS-770R to display live streaming video from an IP camera, streaming encoder (Crestron DM‑TXRX‑100‑STR or similar), or DigitalMedia™ switch.3 Video is delivered to the touch screen over Ethernet, eliminating the need for additional video cabling.

Rava SIP Intercom

Rava SIP Intercom technology enables hands-free VoIP communication with other Rava-enabled touch screens and door stations. Rava works over Ethernet, supporting two-way intercom and paging without the need for special cabling. VoIP phone functionality is also possible through integration with a SIP-compatible IP phone system or SIP server, enabling hands-free telephony with speed dialing, caller ID, custom ringtones, and other enhancements. Built-in echo cancellation provides full duplex for clear, seamless voice communication using the integrated microphone and speakers.2

Power over Ethernet

With PoE technology, the TS-770R draws power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power cabling. Crestron PoE switches (CEN‑SW‑POE‑5 or CEN‑SWPOE‑163) offer a comprehensive network solution with built-in PoE for multiple touch screens. A PoE injector (PWE‑4803RU3) is also available to support a single touch screen.

NOTE: Please refer to the "Power" specification for more details.

Enterprise-class security

Crestron touch screens utilize enterprise-class networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® integration.

Optional mounting accessories

The TS-770/1070-SMK allows you to permanently mount your touch screen on a tabletop and allows for 330-degree rotation.

Key Features

• Crestron®'s next-generation tabletop touch screen with native Crestron Home™ OS
• 7-inch (178 mm) widescreen display with color Active matrix with WXGA 1280 x 800 display resolution
• Capacitive touchscreen
• Built-in Rava® SIP intercom
• Built-in speakers and microphone
• H.265, H.264, or MJPEG streaming video display
• Single-wire Ethernet connection with PoE or PoE+ power supply
• Wi‑Fi® network connectivity
• USB 2.0 port
• Enterprise-class security and authentication
• Web-based or device-based configuration
