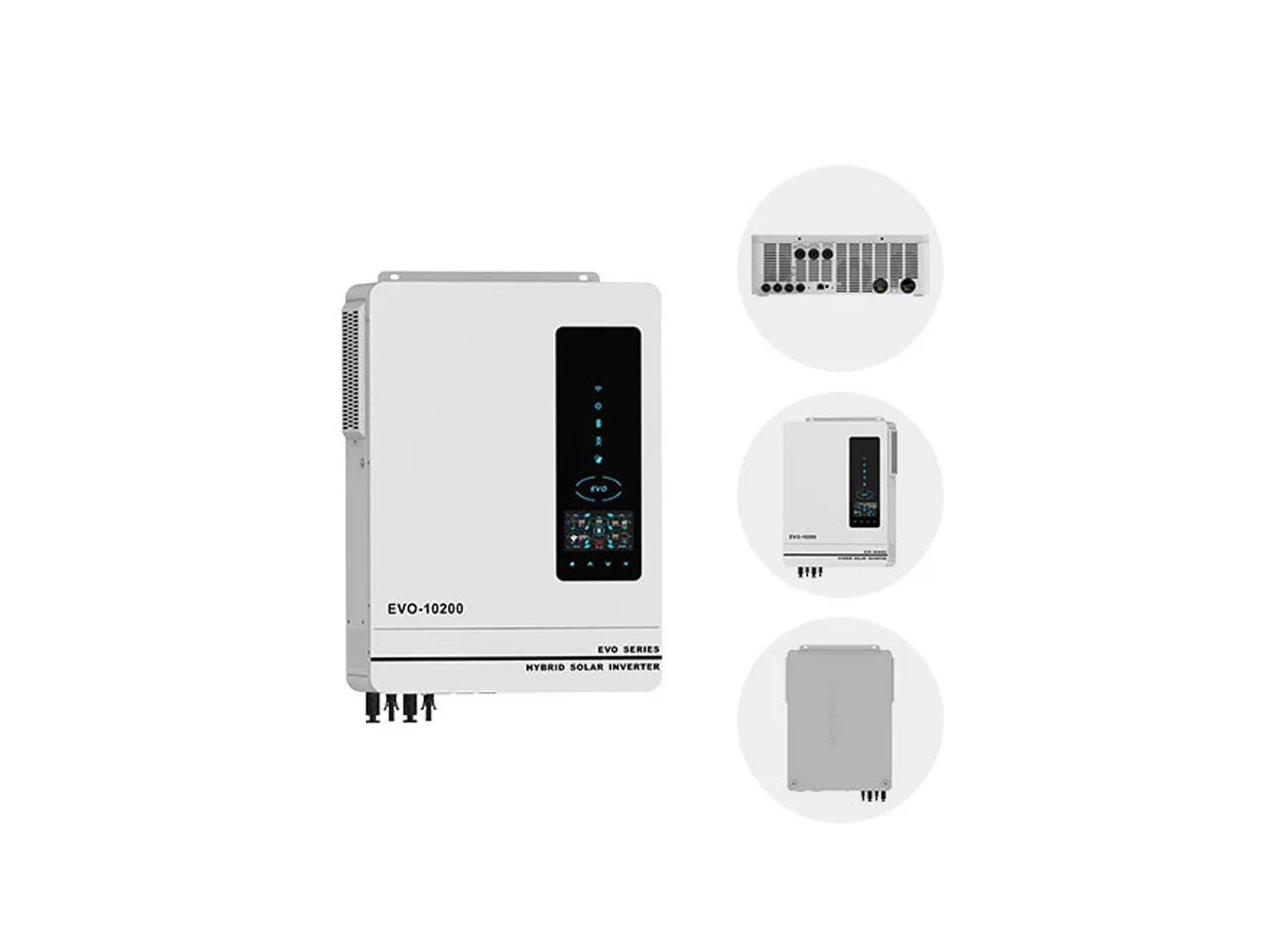

Anern SCI-EVO-10200 10.2kW 48V Hybrid Off-Grid Solar Inverter
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
SCI-MAX-10200 Hybrid Inverter (10.2 kW)
The most powerful hybrid off-grid inverter with dual MPPT and pure sine wave.
Main features
- Continuous power: 10.2 kW
- Ability to connect up to 10.2 kWp photovoltaic panels
- 2 independent MPPT inputs
- Compatibility with 48V batteries (AGM, GEL, acid, LiFePO4)
- Works with the grid or fully off-grid
- LCD display with touchscreen
- RS-232 communication, ability to connect WiFi or GPRS module
Technical data
| Model | SCI-MAX-10200 |
| Nominal power | 10.2 kW |
| Output type | Pure sine wave 230V ±5% |
| Frequency | 50 Hz |
| Efficiency (DC/AC) | Up to 94% |
| Peak efficiency | 99% |
| Battery voltage | 48V (max. 63V) |
| Operating modes | UPS, battery priority, mains, PV |
| PV input | 2x MPPT, voltage 90–500 VDC, max. 500V OCV |
| Max. panel power | 10.2 kWp |
| Charging current (AC + PV) | Up to 160A |
| AC outputs | Main (10.2 kW) + EKO (3.4 kW) |
| Communication | RS-232, optional WiFi / GPRS |
| Cooling | Active (fan) |
| Operating temperature | -10°C to 50°C |
| Dimensions | 537 x 390 x 130 mm |
| Weight | 14.5 kg |
Application
Inverter ideal for off-grid systems, with the possibility of cooperation with the 230V network. It works well as an emergency power supply, PV inverter or as part of an autonomous photovoltaic system.
Supports automatic switching of power sources and intelligent charging of batteries from PV and the network. Possibility of remote monitoring after connecting the WiFi module.
Item is refurbished by manufacturer, which means it comes from returns or similar. Refurbished products are fully tested for functionality and defects before they are sold. Item is provided with 1-month seller's warranty.
