Front Brake Kit Opel Astra G MAPCO

ATE System Diameter 256 mm 4 Holes

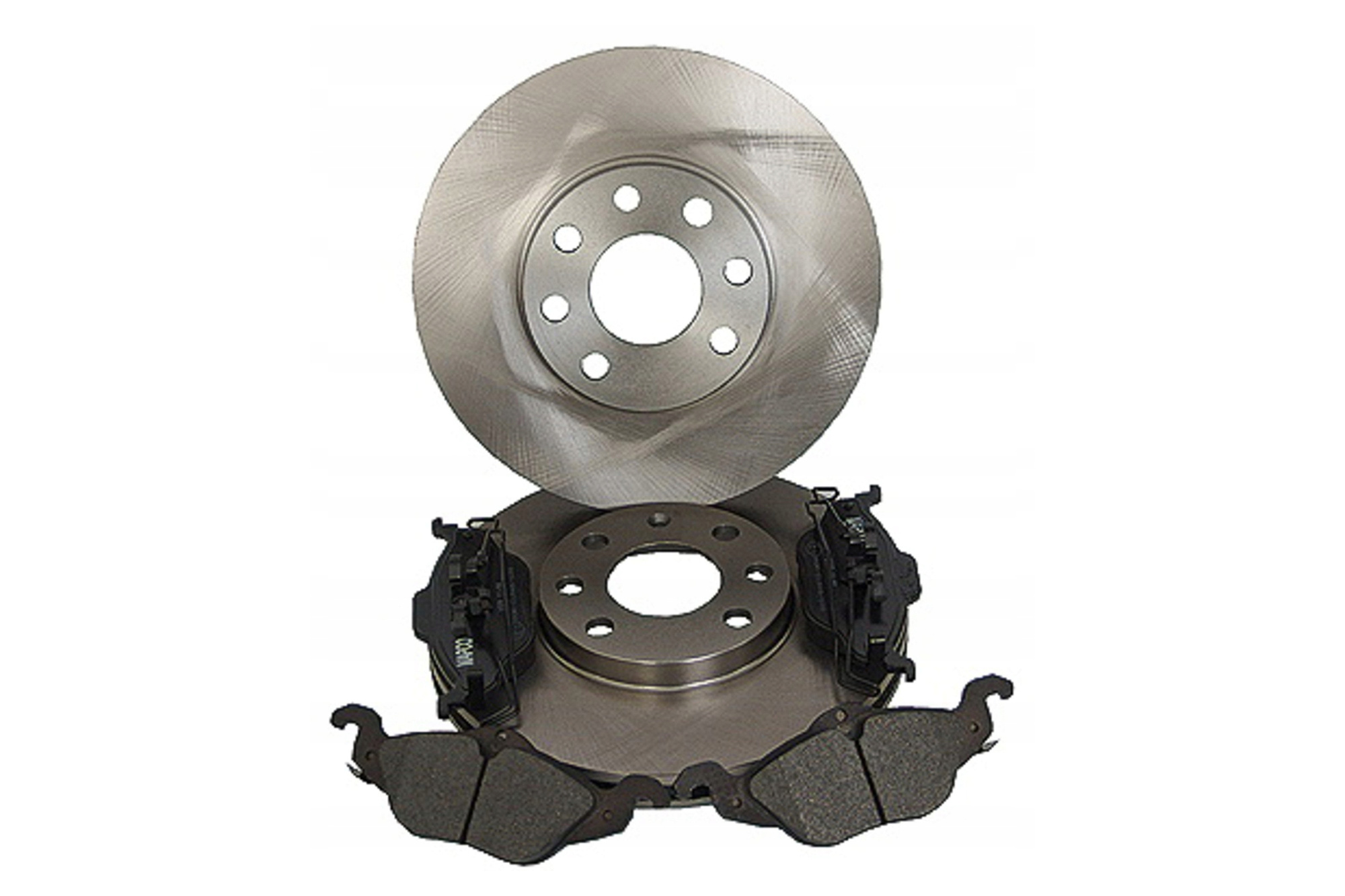

A complete front axle braking system repair kit, manufactured by the renowned company MAPCO. The offered set includes brake discs and pads, designed specifically for the Opel Astra G model. These parts are high-quality replacements that ensure driving safety and braking efficiency comparable to original parts.

The discs in this set are vented, which prevents overheating during intensive use. The brake pads are equipped with an acoustic wear sensor that informs the driver when the linings need to be replaced. Due to different braking system variants in the Astra G model, it is crucial to verify the disc diameter (256 mm) and the number of mounting bolts (4 holes) before purchasing.

Technical Specifications

• Fitting Position: Front Axle
• Braking System: ATE
• Disc Type: Vented
• Outer Diameter: 256 mm
• Disc Thickness: 23.8 mm
• Number of Holes: 4
• Bolt Circle Diameter: 100 mm
• Wear Sensor: Acoustic

Model Compatibility

• Opel Astra G (T98) Saloon / Hatchback / Estate (1998-2009)
• Opel Astra G Convertible (F67) (2001-2005)
• Opel Astra G Box (F70) (1999-2000)
